Sea Lion Theater Of Dream Aquarium,Shenzhen

Located on the west side of the second floor of OCT Harbour Shopping Center, Dream Aquarium is a multi-purpose aquarium with science education and entertainment as an iconic world-class marine theme park in South China. Breaking through the conventional design concept of the traditional aquarium in China, this aquarium uses the spatial characteristics of the site to plan and select materials, and fully considers the visitor behavior pattern. It adopts the unique deep sea immersion design concept, combined with wall stereo imaging, ground interactive projection, LED effect. Lights, water wave projection lamps and other international leading multimedia technologies, three-dimensional presentation of whales in the ocean world, sharks swimming, dolphins, flying, more vivid corals and jellyfish flashing scenes, creating immersive ring image Wrap the audio-visual feeling and create an unprecedented viewing experience.

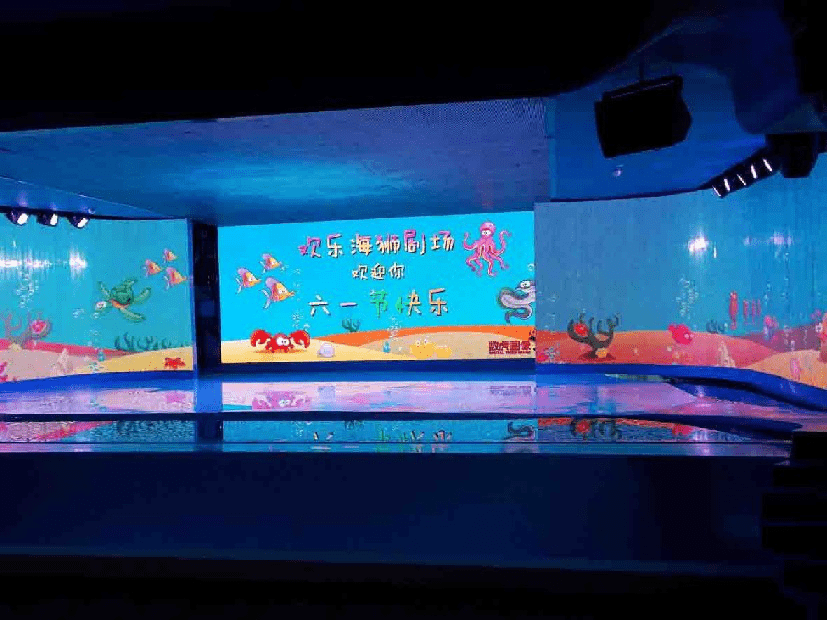

This time PLA engineering team used 2 months to make every effort to create a performance venue for the sea lion show with multimedia technology for the Sea Wonder Theatre. The auditorium of the theater has a total of 200 seats; the stage is in the form of a frame, the main stage is about 60 square meters, the auditorium is about 4 meters from the main stage, and the control room is about 15 meters from the main stage.

The sound reinforcement system adopts L-acoustics power amplifier and speaker system. The microphone adopts German SENNHEISER microphone, Japan DENON, TASCAM, American Fostex playback equipment, control equipment adopts British DiGiCo digital console, and also has monitor headphones and detection computer. , network switches and other equipment. Excellent equipment performance, perfect system structure and easy operation, all meet the high requirements of the show, and have excellent scalability and compatibility.

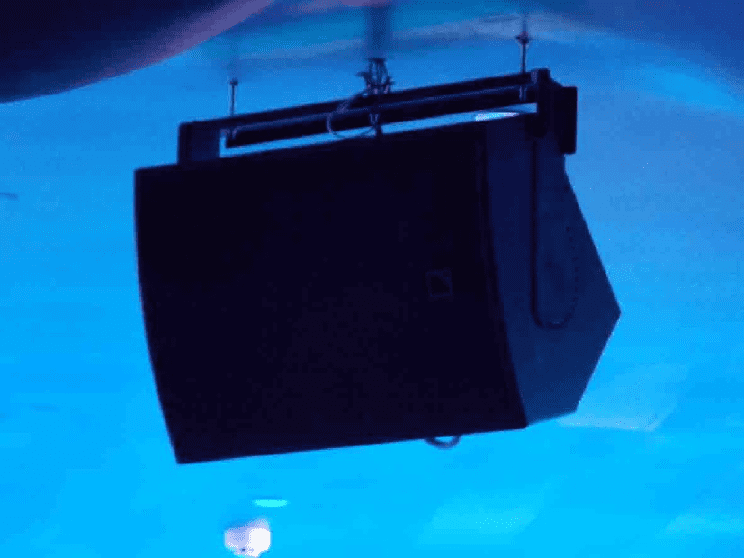

Sound field design: The left and right main sound reinforcement boxes 12XTi are hung on the front sides of the stage, and the sound field covers the audience. To enhance low frequency shock, set up 2 units subwoofers SB18i. A total of 4 units surround speakers 8XTi are installed in the left, right and rear walls of the auditorium, and can be used as a fill sound. The foldback speakers are placed in front of the stage, one on each side, and the sound field can cover the stage. Excellent sound effects, perfectly matched with the vivid and amazing performance of sea lions.

The stage lighting system uses the German MA console, the famous FineART LED PAR lamp and the Spot 700 computer moving head lamp. The surface light, the slap light, and the side light composed of the LED PAR are arranged according to the stage of the performance to uniformly cover the required area, and the stage is vivid and layered. Plus the left and right sides of the stage (including the front, middle and rear), as well as the computer moving head lights on both sides of the auditorium, make the stage effect more active and vivid, and make the protagonist on the stage more prominent. Combined with the rich functions of the lighting console, simple operation and stable performance, the entire lighting system can create ever-changing and beautiful effects.
