PRODUCTS

Type

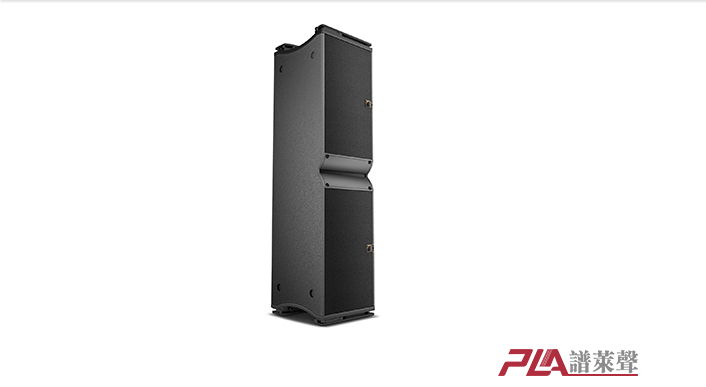

3-way full-range active WST® enclosure

Powering and driving system

LA8, LA12X

Nominal frequency(-10dB)

35Hz - 20kHz ([K1] preset)

Maximum SPL

149dB ([K1] preset)

Available setting

H x V: 70°/90°/110° x 10°4

Transducers

H x V: 90° x 5°4

LF: 2 × 15’’ bass-reflex

MF: 4 x 6,5’’bass-reflex

HF: 3 x 3’’compression

Rigging

K1-BUMP

Dimension(W×H×D)

1342 x 438 x 520mm

52.8 x 17.2 x 20.5in

Net weight

106kg - 234lbs
