Type

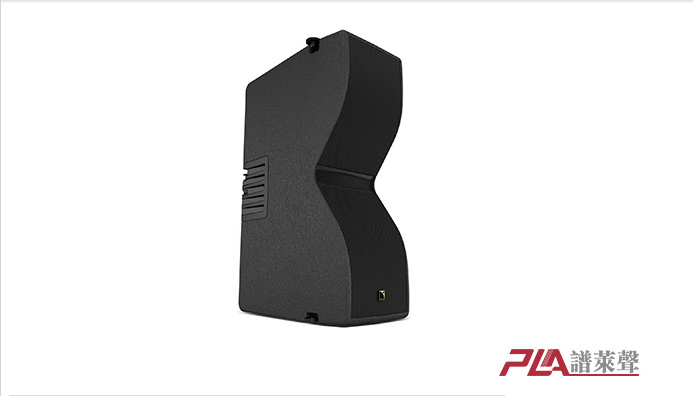

2-way passive WST enclosure

Powering and driving system

LA4X, LA8, LA12X

Nominal frequency(-10dB)

70Hz - 20kHz ([KIVA II] preset)

Maximum SPL

138dB ([KIVA II] preset)

Available setting(-6dB) 3

H x V: 100° x 15° 4

Transducers

LF: 2 × 6.5’’, bass reflex

HF: 1 x 1.75’’ compression

Rigging

Flush fitting 3-point rigging system

Inter-enclosure angles [deg]: 0, 1, 2, 3, 4, 5, 7.5, 10, 12.5, 15

2 handles

Dimension(W×H×D)

20 x 175/104 x 357mm

20.5 x 6.9/4.1 x 14in

Net weight

13kg - 28.6lbs.
