Type

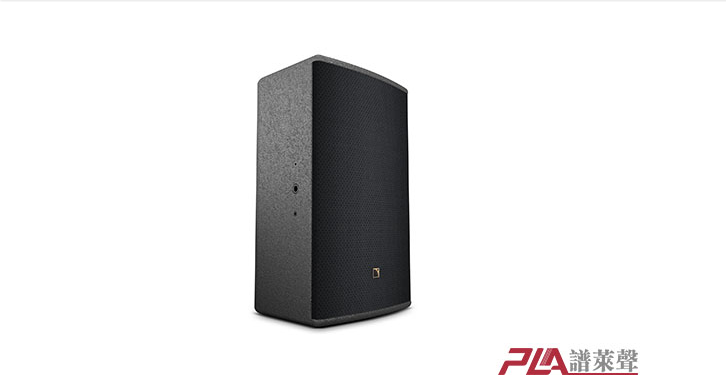

passive 2-way coaxial enclosure

Powering and driving system

LA4X, LA8, LA12X

Bandwidth

129dB ([X8] preset)

Maximum SPL

138dB ([KIVA II] preset)

Nominal directivity

Axisymmetric100°

Transducers

LF: 1 × 8’’, bass reflex

HF: 1 × 1.5’’compression

Rigging

1 × handle

DIN580-compatible M8 threaded insert

4 × M10 threaded inserts

35 mm pole socke

Dimension(W×H×D)

250 x 424 x 264mm

9.8 x 16.7 x 10.4in

Net weight

11kg / 24.3lbs.
