PRODUCTS

Type

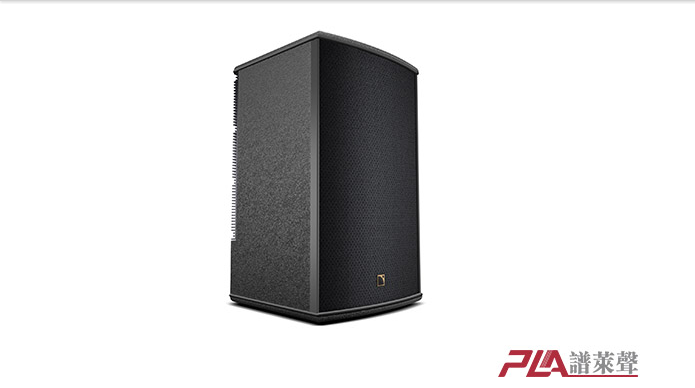

Self- powered coaxial enclosure

Powering and driving system

Active

Bandwidth

55Hz - 22kHz ([FRONT] preset)

Maximum SPL

127dB ([FILL] preset)

Nominal directivity

Axisymmetric100°

Transducers

LF: 1 × 8’’, bass reflex

HF: 1 × 1.5’’compression

Rigging

Integrated pole mount socket,

optional ETR8-2 bracket

Dimension(W×H×D)

250 x 421 x 299mm

9.8 x 16.6 x 11.8in

Net weight

13kg /28.6lbs.
