Applications | Feature | |
Touring performance | Extremely compact , Small enclosure, light weight | |
Club, multi-function hall | Precise realization of multiple applications of hanging, stacking and supporting with LS10. | |
Church | Combined with the LS10 and 18-inch subwoofer, it can be combined into a medium-to-large line array system. |
Technical parameters | ||

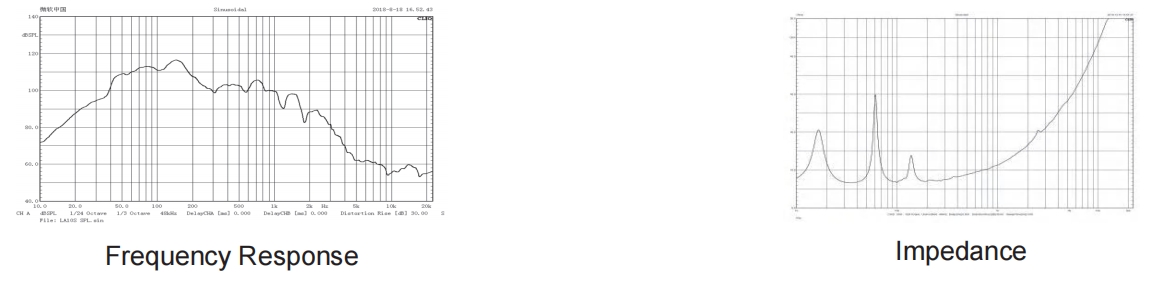

Frequency response | 40Hz ~ 150Hz(士3dB ) | |
Nominal directivity(-6dB) | Omnidirectional | |
Maximum SPL | 125dB/135dB SPL | |
Power Requiremen | 200-240V ~ 50-60Hz | |
Sensitivity(@1w/1m) | 131dB SPL | |
Impedance | 8 ohm | |
Transducers | LF:1x15" All Condition Woofer | |
SNR | 104dB | |
Output electric circuit | Class D circult | |
Power Rating | 2000W @4Ω |
Physical data | ||

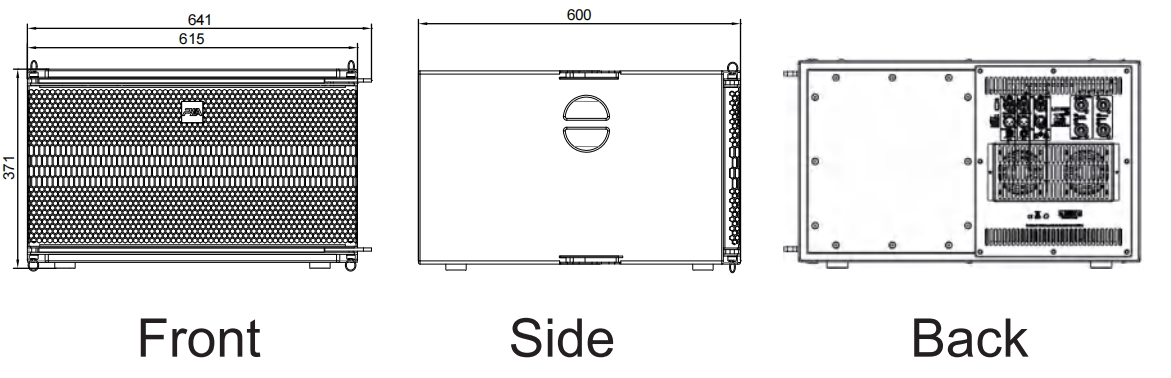

Dimensions | 641x600x371mm | |
Weight | 37Kg | |
Connectors | USB+XLR+PowerCON+NEUTRIK NL4 | |
Speaker Cables | 1+1- | |
Materials | The box body is made of birch boards with environmentally friendly PUA polyurea waterproof and anti-corrosion coating on the surface. | |
Finsh | Black Polyurea paintings | |
Grille | DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid. | |
Angles | 0、-5° adjustabl |
