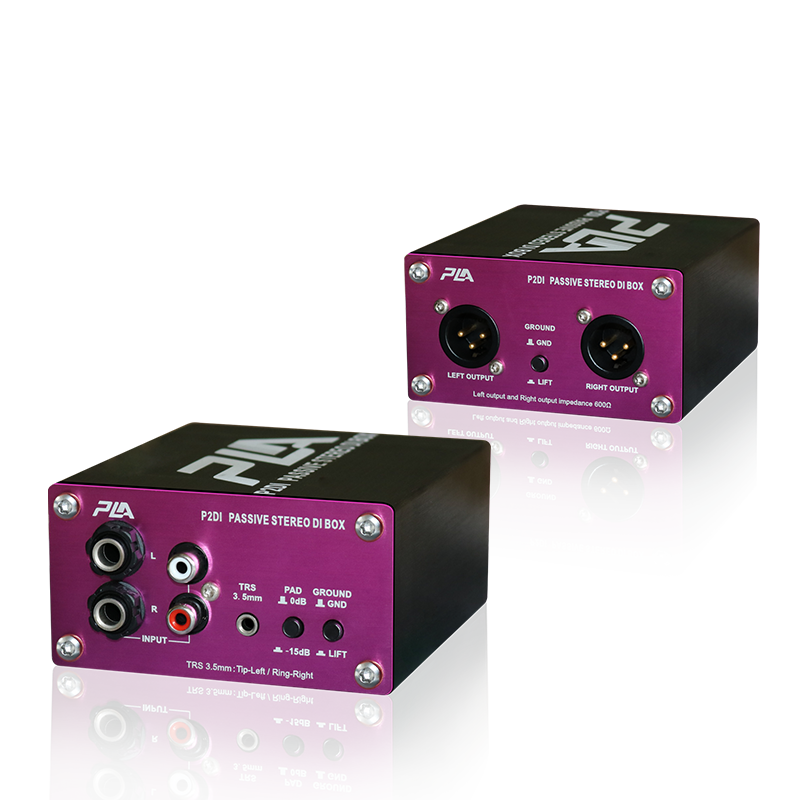

P2DI Dual Channel Passive DI Box


P2DI is a two-channel passive DI box designed for audio and video professionals, using a specially customized high-performance bormo-alloy isolation transformer for conversion impedance and balanced transmission, while providing excellent common mode rejection.The transformer eliminates the noise of the earthing loop. In order to further reduce the susceptibility to noise, the transformer adopts full shielding package and makes earthing treatment, thus preventing the frequency and electromagnetic induction. The P2DI DI box is made of an integrated aluminum body to further insulate against external interference, while being extremely durable to protect switches and connectors from damage.

Input interfaces for high-impedance instruments include stereo RCA, 6.35mm and 3.5mm interfaces, and -10dB consumer linear level devices. After the signal is converted through P2DI, the output standard 600 ohm microphone level is directly connected to the microphone input of the mixer.These features make the P2DI DI box an ideal interface for laptops, CD players, ipods and other sound sources. The P2DI works well when these devices need to be connected to a public address system.

Features:

※ Flexible and passive DI with excellent audio

※ H-performance glass-molybdenum isolation transformers

※6.35mm,RCA and 3.5mm audio input connectors

※ Dual-channel design for greater ease of use

※ -15dB attenuation for W dynamic Input level

※ Isolation transformer eliminates ground loops

※ Converts H-resistance loss to low-resistance microphone level

※ Completely passive use, no external power supply or batteries required

Frequency Response: 20Hz~18.5kHz(±0.2dB)

Dynamic Range: 128dB

Maximum Input:+18dB@20Hz

Distortion:0.01%20Hz~20kHz

Phase Deviation:1°@100Hz 8°@20Hz

Input Impedance:140kΩ,unbalance

Output Impedance:150Ω,Balance

Dimensions:105mm(L)×98mm(W)×52mm(H)

Weight:520g

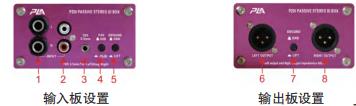

Description:

(1) 6.35mm INPUT

(2) RCA INPUT

(3) 3.5mm TRS INPUT

(4) -15dB PAD: -15dB signal attenuation switch, when the button is pressed out, it means 0dB attenuation, when the button is pressed, the signal will be attenuated by 15dB.

(5) RIGHT CH GND : When the CH R ground switch or pushbutton is pressed out, INPUT L and INPUT R are connected to a common ground, and when the pushbutton is pressed down, the INPUT R ground will be separated from the INPUT L ground

(6) LEFT OUTPUT :Balanced XLR output

(7) GROUND LIFT :When the ground switch or button is pressed out, the input is grounded, and when the button is pressed down, the input is grounded.

(8) RIGHT OUTPUT :Balanced XLR output.
