Near-Field Sound

Rotatable 80 x 50°directivity horn

Elastic bass

Long throw rubber edge LF driver

With PCT(Phase Coherent Technology) technology

Technical parameters

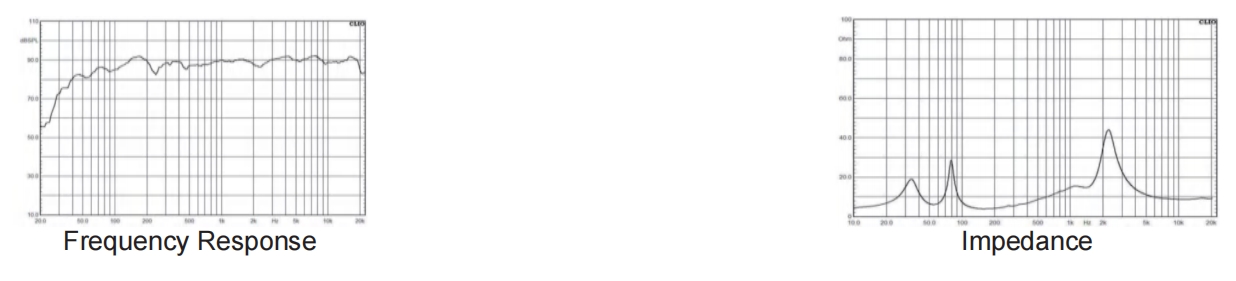

Frequency response

Nominal directivity(-6dB)

Sensitivity (@1w/1m)

Power Rating

Impedance

Maximum SPL

Transducers

55 Hz ~ 18 kHz (± 3 dB );50 Hz ~ 20 kHz (-10 dB )

80°（H）×50°(V)  Constant directivity

92 dB SPL

400W

8 ohm

118dB/128dB SPL peak

LF:1x10" All Condition Woofer

HF:1x1.75"Phase Correction HF compression driver

Power lnput

Connectors

Speaker Cables

NEUTRIK NL4MP*2

1+1-

Appearance

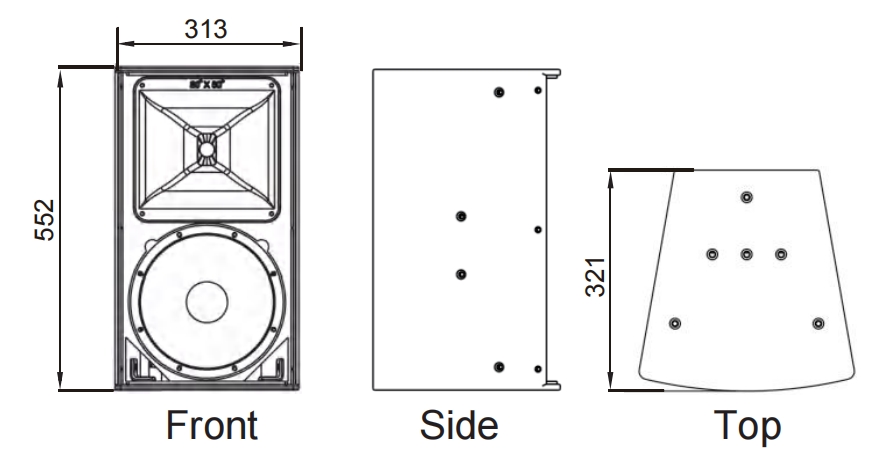

Dimension

Weight

Material

Finish

Cover

Grille

552 x 313 x 321 mm

20 kg

Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Black polyurea paintings

Black epoxy mesh grille with acoustically reticulated cloth

DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
