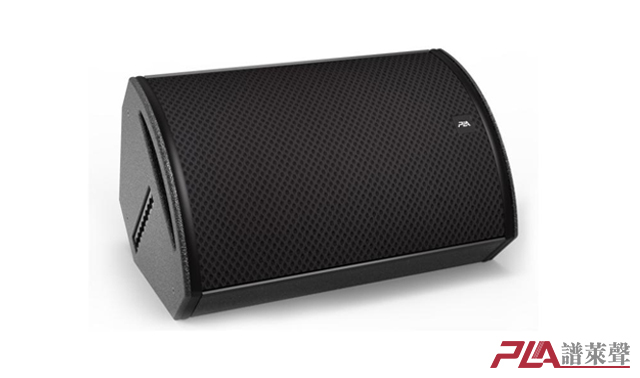

CS15
Applications | Feature |
Dual-purpose for mobile performances | Coaxial construction to optimize directivity near the crossover point |
returns and main expansion | 3"Phase Correction Neodymium magnetism HF compression driver |
Fequency response was designed according to the monitor performance which can solved theproblemsof howling in the sound field | |
With CPS(Coaxia l Point Source) technology |
Technical parameters | |

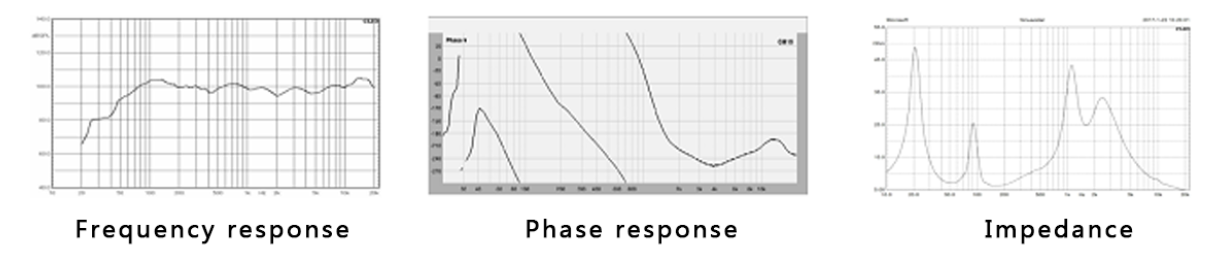

Frequency Response | 50 Hz ~ 18 kHz(±3 dB) ; 40 Hz ~ 20 kHz(-10 dB) |
Nominal directivity(-6dB) | 80°(cone) |
Sensitivity(@1w/1m) | 100 dB SPL |
Power rating | 450 W |
Impedance | 8 ohm |
Maximum SPL | 126dB/136dB SPL peak |
Transducers | LF:1x15" All Condition Woofer HF:1x3"Phase Correction HF compression driver |
Power lnput | ||||
| Connectors | WP4*2，NEUTRIK NL4MP*2 | |||
| Speaker Cables | WP4:1-2+ Or NL4:1+1- | |||
Physical data | |

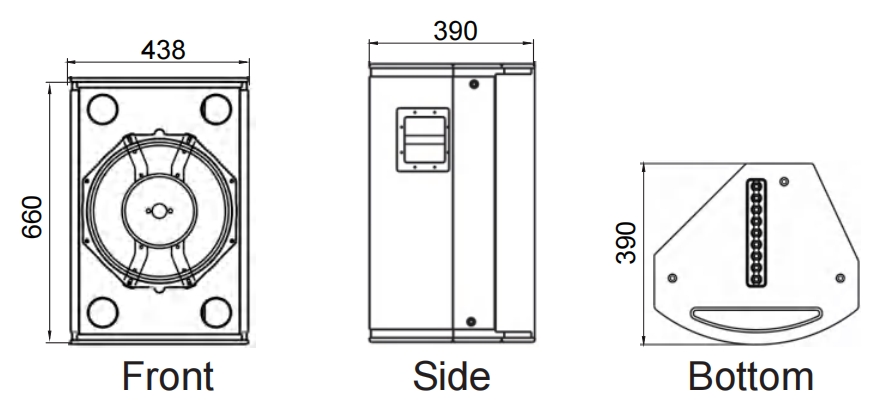

Dimension | 438x390x660mm |
Weight | 29kg |
Material | Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings |
Finish | Black Polyurea paintings |
Cover | Black epoxy mesh grille with acoustically reticulated cloth |
Grille | DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid. |
-
