PS12


Application


Feature

Elastic bass

Bar

Long throw rubber edge LF driver

KTV

Rotatable 80 x 50°directivity horn

Near-Field Sound

With PCT(Phase Coherent Technology) technology


Technical specification

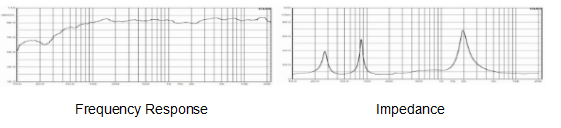

Frequency Respond

55 Hz ~ 18 kHz(±3 dB);40 Hz ~ 20 kHz(-10 dB)

Nominal directivity(-6dB)

80°(H) ×50°(V) Constant directivity

Sensitivity(@1w/1m)

96 dB SPL

Power rating

450W

Impedance

8 ohm

Maximum SPL

122dB/132dB SPL peak

Transducers

LF:1x12" All Condition Woofer

HF:1x1.75"Phase Correction HF compression driver



Power lnput




Connectors

Speaker Cables

NEUTRIK NL4MP*2

1+1-



Physical data

Dimension

352x368x602mm

Weight

22Kg

Material

Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Finish

Black Polyurea paintings

Cover

Black epoxy mesh grille with acoustically reticulated cloth

Grille

DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
