LM12

Applications	Feature
Touring performance	Frequency response special design to avoid auditory fatigueTouring performance,Theatre, Music hall 、Dual purpose return and main expansion
Theatre, Music hall	Asymmetrical rotatable horn
Dual purpose return and main expansion	3"Phase Correction HF compression driver
	With PCT(Phase Coherent Technology) technology

Technical parameters

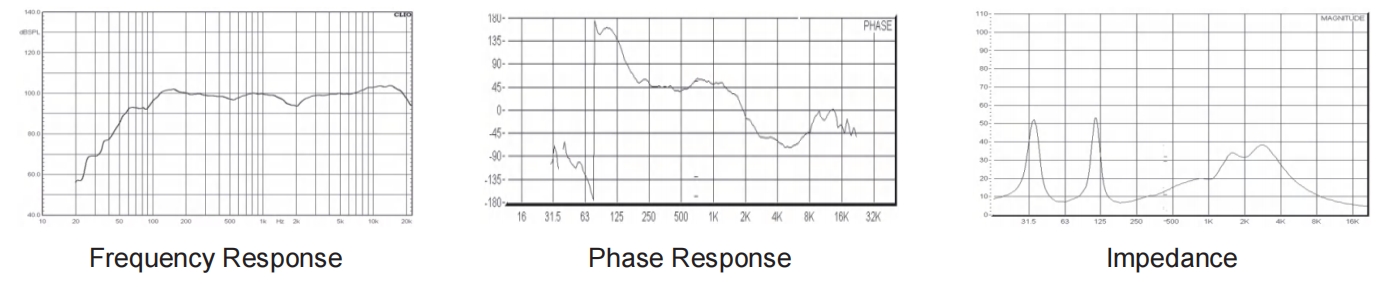

Frequency response	65 Hz-18 kHz(+3dB) 55 Hz-20 kHz(-10dB)
Nominal directivity(-6dB)	60°(H)×40°(V) Constant directivity
Sensitivity (@1w/1m)	98 dB SPL
Power Rating	400W
Impedance	8ohm
Maximum SPL	124dB/134dB SPL peak
Transducers	LF:1x12" All Condition Woofer HF:1x3"Phase Correction HF compression driver

Physical data

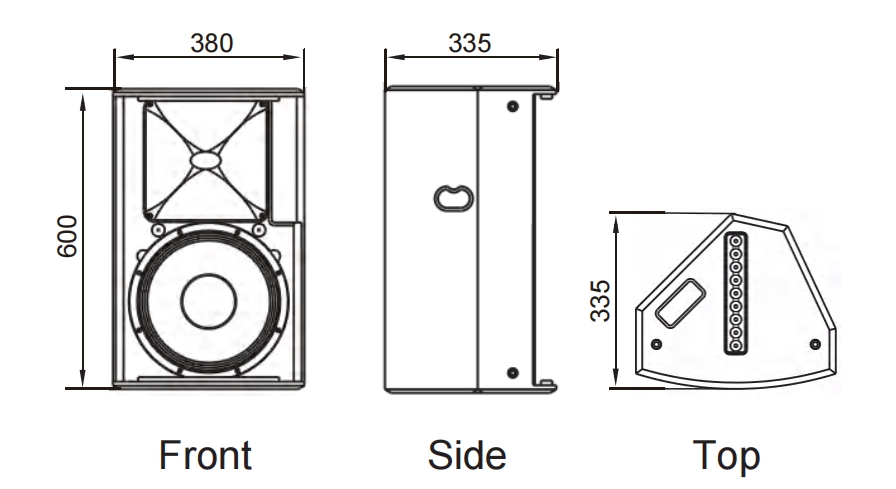

Dimensions	380x335x600mm
Weight	22Kg
Connectors	WP42,NEUTRIK NL4MP2
Speaker Cables	WP4:1-2+,NL4:1+1-
Material	Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings
Finsh	Black Polyurea paintings
Cover	Black epoxy mesh grille with acoustically reticulated cloth
Grille	DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
