LS210S
| Applications | Feature |
| Living performance | 4 Inch voice coil, large dynamic design ultra-low unit |
| Theatre and multi-function hall | Extremely compact , Small enclosure, light weight |
| Church | Used with 1-4 set LS210 line array speakers |
| Medium-sized two-way crossover system | |
| All neodymium high sensitivity unit, great dynamic margins | |
| With APS angle preset function | |
| With FMM monitor mode technology and +15° front panel angle adjustment | |
| Configuration WPE Wavepath Equal Distance Sound Guide |
| Technical specification | |

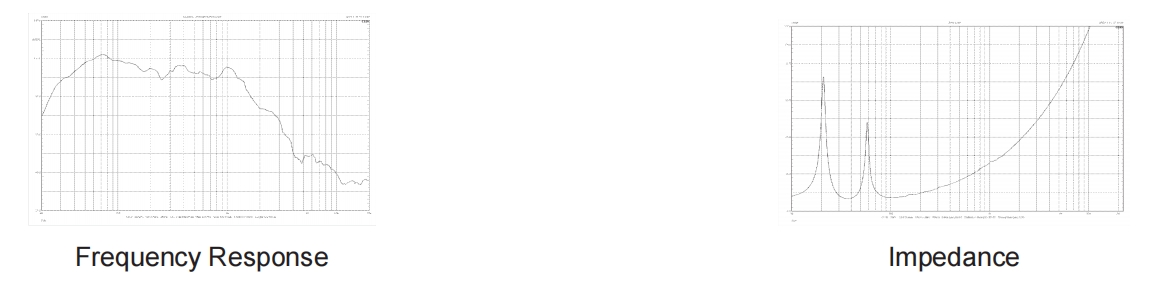

| Frequency response | 45Hz ~ 150Hz(+3dB)；30Hz ~ 200 Hz (-10dB ) |
| Nominal directivity(-6dB) | Omnidirectional |
| Sensitivity (@1w/1m) | 99 dB SPL |
| Power Rating | 1500W |
| Impedance | 8ohm |
| Maximum SPL | 130 dB/140 dB SPL peak |
| Transducers | LF:1x18" All Condition Woofer |
| Physical data | |

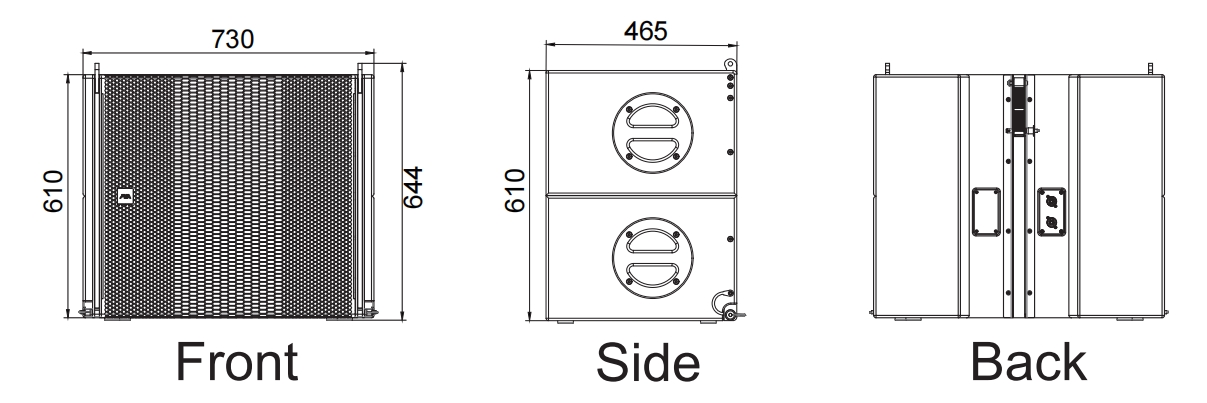

| Dimensions | 730 x 465 x 610 mm |
| Weight | 53kg |
| Connectors | WP4*2,NEUTRIK NL4MP*2 |
| Speaker Cables | WP4:1-2+ ;NL .4:1+1- |
| Material | Imported multi-plywood Environmental waterproof AND ANTI-CORROSION COATINGS |
| Finish | Black Polyurea paintings |
| Grille | DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic |
-
