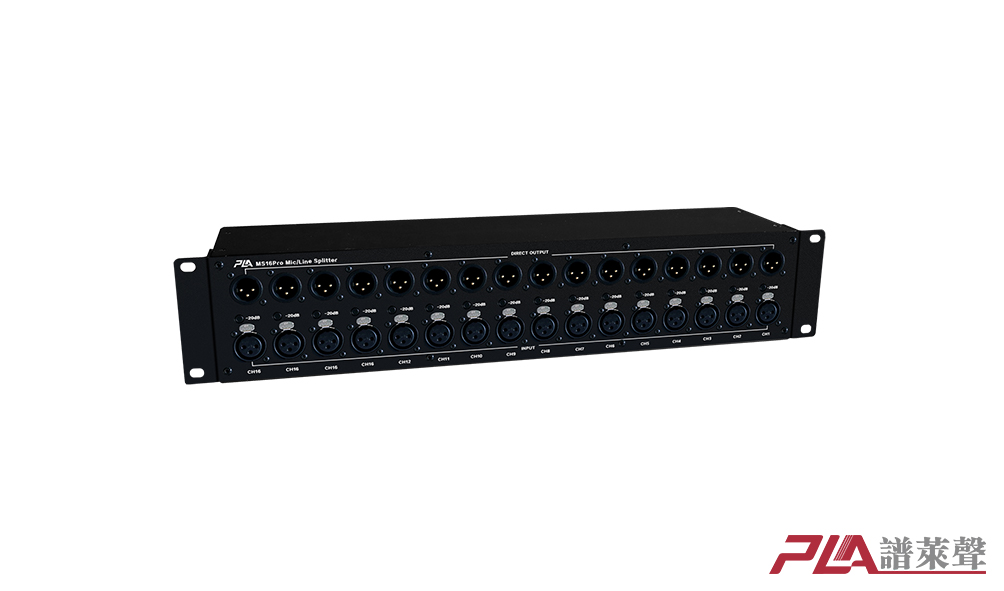

Passive Microphone Splitter

The Microphone Splitter System is designed for flexible audio system installation applications such as radio / television studios and stage monitoring. The use of NEUTRIK XLRs connector for easy change the input / output channel location.

The professional quality Micophone Splitter Systems are designed for use in applications where exceptional audio performance, with first level audio transformers ,offer up to +26dBu’s audio level signal processing.

The microphone distributor is composed of a set of balanced original imported Swiss NEUTRIK 3 core Carnon motherblock independent input channel, and equipped with -20dB attenuation switch; Each Microphone Splitter has three outputs- one is direct and two are transformer coupled. There are two switches for A and B outputs.  The 2 sets of isolation transformers, outputs (A and B) are also equipped with ground separation selector switches to help solve the noise caused by the ground circuit. When the switch is pushed to the left, the ground wire will be set apart; When the switch is pushed to the right, the ground wire will be set to connect.

※Broadcast-level audio quality

※ Working level up to +26DBU

※ PPD Phantom Power through technology: each set of outputs can simultaneously provide phantom power for capacitive microphone work

※ Specifically designed for touring

※Broadcast grade audio isolating transformer output

※One-Channel direct output, two-Channel  ground output can be independently disconnected set selection

※Standard 2u-19 inch Rack airframe

※Front and rear panels can also be installed on the rack

※ High integration, rugged all-metal body

※ Military index parts manufacturing

※Each channel of the Distributor is provided with three sets of outputs: 1 sets of direct output and 2 sets of isolated transformer outputs

※Independent ground separation set selection

Frequency Response: -0.2dB,20Hz~20kHz,0dB

Input Level: MAX +26dBu to 50Hz

Distortion: 0.005%(0dBu 1kHz)

Attenuation Loss: -2.3dB to 600Ωload (in most high impedance input devices,can be considered                               without attenuation loss)

Output Short-Circuit Loss: -1.4dB

Set Up: Ground selection of output A and output B of isolating Transformer XLR male jack,                         Isolation transformer output B and direct output microphone fantasy power selection

Patented Technology: The patented PPD phantom power pass-through technology allows each                                        output to provide phantom power to condenser microphones                                                         simultaneously, while keeping the earth wires separate

Dimensions: 483mmx88mm104mm

Weight: 6.5kg
