PRODUCTS

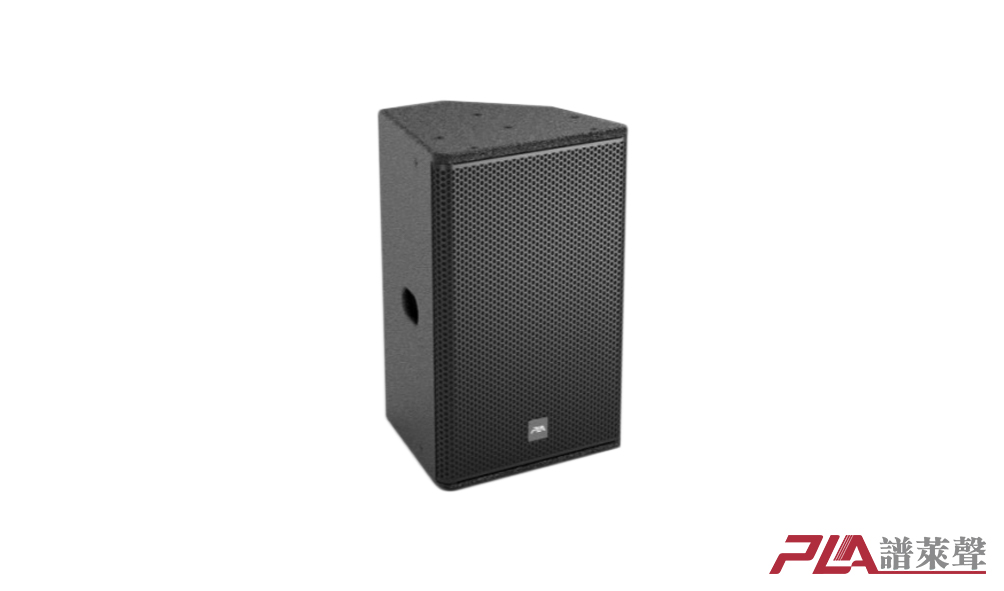

PC12

Features:

1. It has PCT(Phase Coherent Technology) phase coherence technology.

Technical parameters:

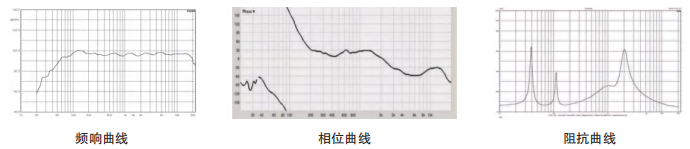

Frequency response: 60 Hz ~ 18 kHz (±3dB )  50 Hz ~ 20 kHz (-10 dB）

Nominal directivity (-6 dB): 100 (horizontal) 55 (vertical)

Constant directivity sensitivity (@1W/1m):96 dB SPL

Speaker power: 400W

Impedance: 8 ohm

Maximum sound pressure level. 128 dB SPL peak

Speaker unit: LF 1 x 12"(75mm voice coil) bass unit HF 1 x 44mm compressed treble.

Physical data:

Height x width x depth: 576 x 372 x 384 mm

Weight: 23kg

Connector: 2×4 core Neutrik NL4 speaker base

Connection mode: 1+1-

Material: Birch wood panels with environmentally friendly PUA polyurea waterproof and anticorrosive coating on the surface

Surface treatment: black polyurea paint

Grid: black epoxy porous steel mesh and sound-transmitting speaker cotton.

Mesh：DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.

Application:

Bar, Theater, Stage return.
