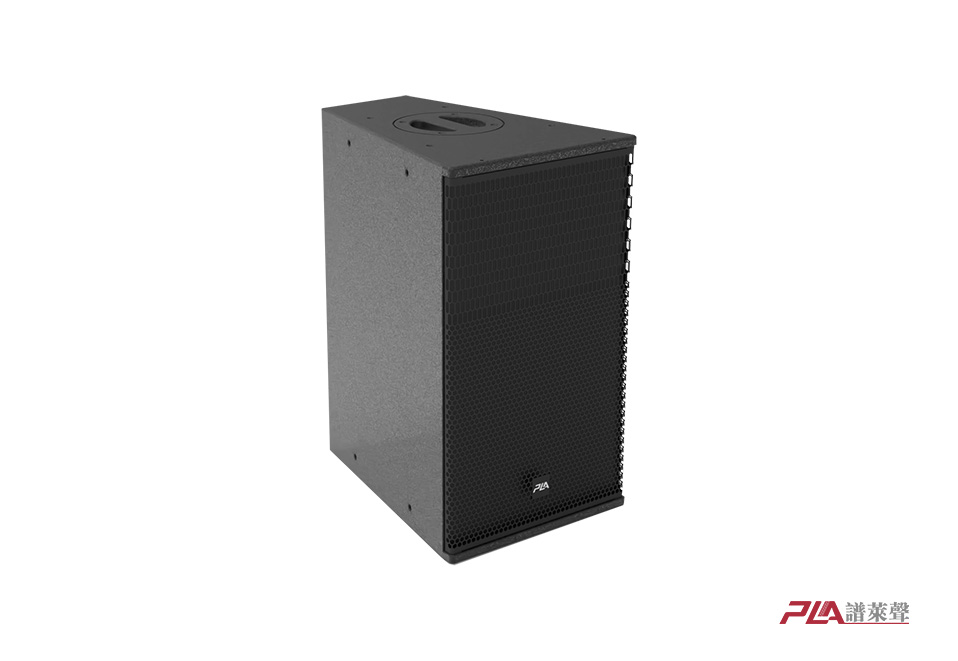

CLA

Features:

1. With WCT (Wavefront Coupling Technology)

2. Can be lifted horizontally and vertically

3. H 22.5°,V 40°,20°asymmetric horn

Technical parameters:

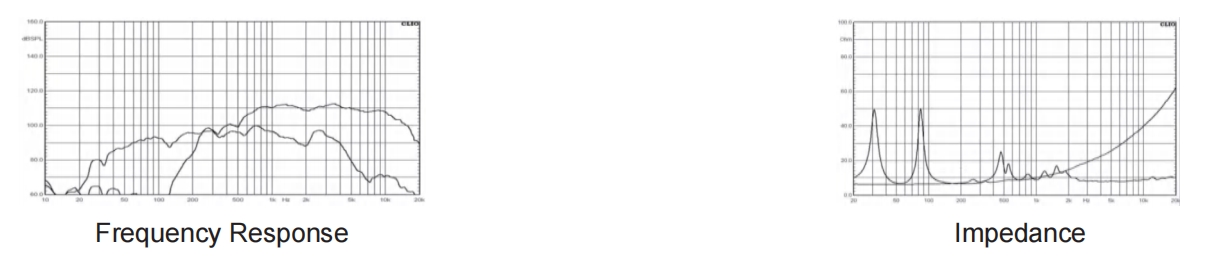

Frequency response: 55Hz~18kHz (soil 3dB) 40Hz~20kHz (-10dB)

Nominal directivity (-6dB): 22.5°(H)x60°(V ,asymmetric,up40,down20)

Sensitivity (@ 1W/1m) HF: HF/LF: 110dB SPL/97dB SPL

Power Rating: HF: 80W；LF: 400W

Impedance: HF: 8 ohm,LF: 8 ohm

Crossover Frequency: 1kHz

Transducers: LF:1x12" All Condition Woofer

                     HF:1x3" Phase Correction compression driver

Riging: M8 screws

Maximum SPL: HF: 129dB/139dB SPL peak

                         LF: 123dB/133dB SPL peak

Physical data:

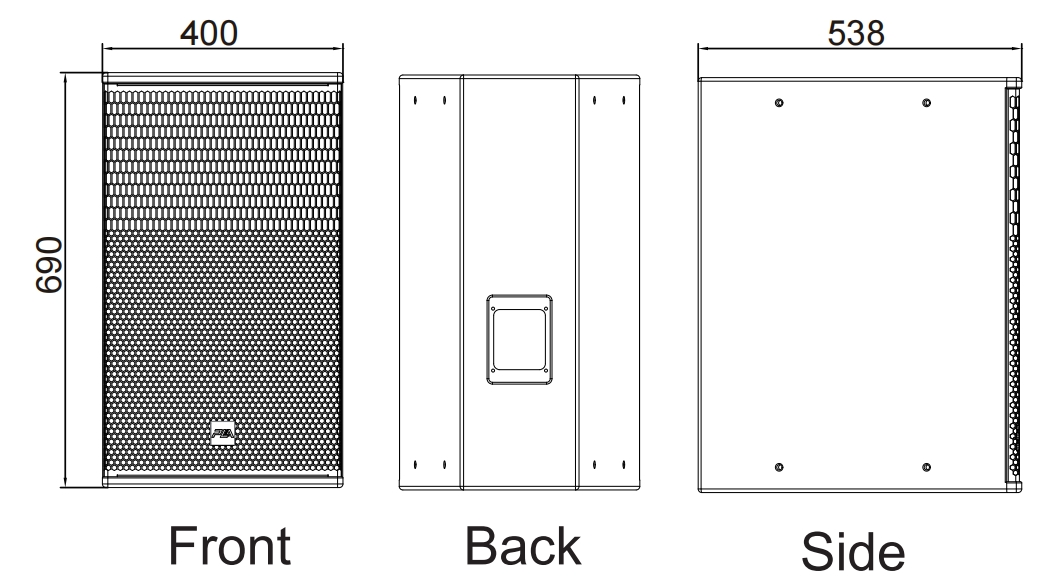

Dimensions: 690X 400X 538mm

Weight: 32kg

Connectors:  WP4*2,NEUTRIK NL4MP*2

Speaker Cables: WP4:LF1-2+ HF 3+4-,NL4:LF 1+1-,HF 2+2-

Material: Imported multi-plywood Environmental waterproof and anti corrosion coatings

Finish: Black Polyurea paintings

Grille: DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.

Application:

Theater, club and bar, multifunctional
