PRODUCTS

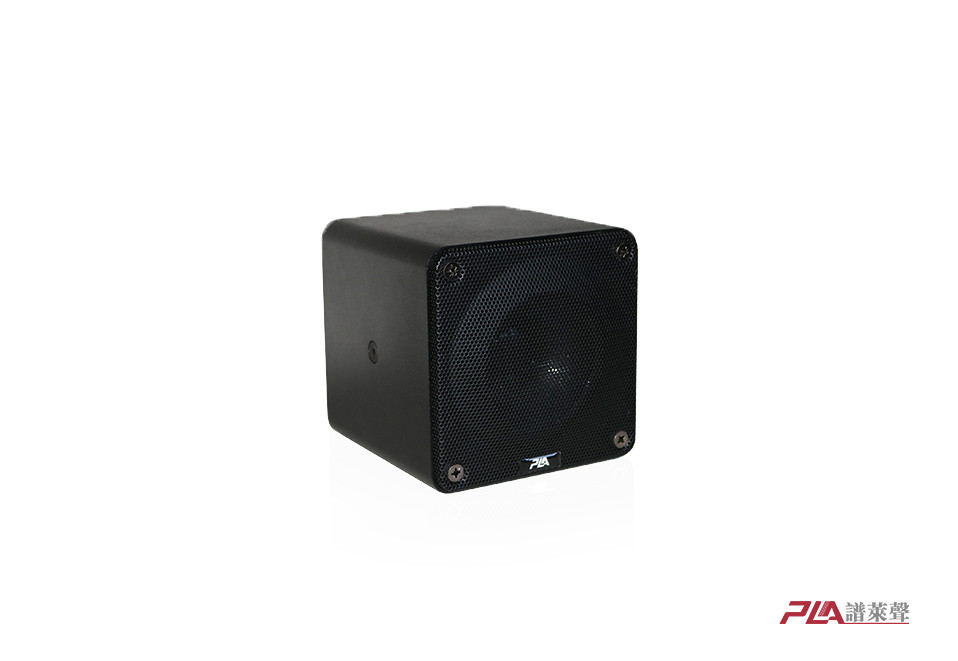

PS4P

Features:

Metal aluminum shell; Extremely compact , Small enclosure.

Built-in Amplifier circuit, Self-powered output, self-contained

High-efficiency 4.5-inch Full Range band unit

D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

MLC(Microphone&Line Combined Input)Preamplifier Circuit Technology

With FCT(Full frequency Coherent Technology) technology

Technical parameters:

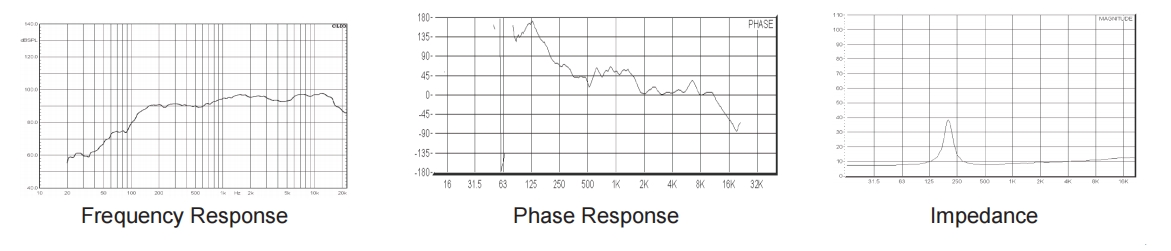

Frequency response: 130 Hz-18 kHz (± 3 dB)，100 Hz -20 kHz (-10 dB)

Nominal directivity (-6dB): 110 ° (H) 110 ° (V)

Sensitivity (@ 1w/1m): 93 dB

Power rating: 50 W

Impedance: 8 ohm

Maximum SPL: 110 dB/120 dB peak

Transducers: 1 x 4.5 "full frequency unit

Power specification: 100-240V ，50/60Hz

HF/LF Adjustment: ±12dB/±12dB

Signal input/output

Mic In/Line In: Neutrik XLR input

                        35mV @ Mic In

                        0.775V @ Line In, 20K ohms

Link Out: Neutrik XLR loop-through output

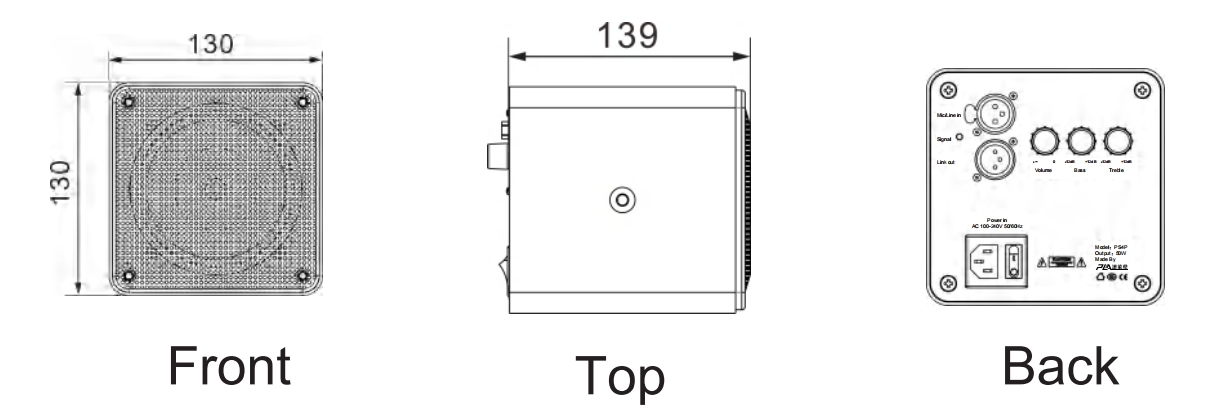

Size: 130x139x130mm

Weight: 3 kg

Material: 3mm aluminum

Finish: white, gray, silver or black water-based paint
