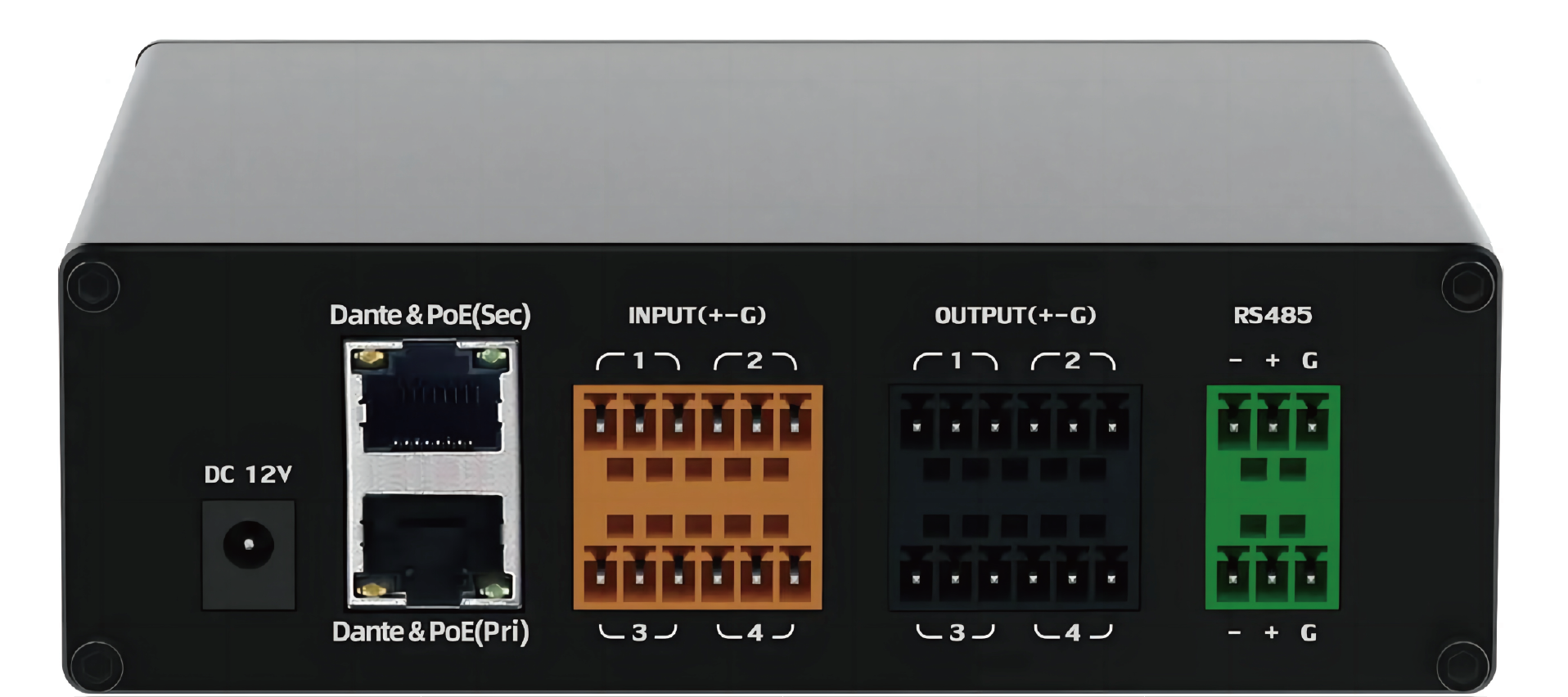

DNI44

4 in 4 out Dante digital to analog network converter

   DNI44 network audio interface box to achieve network digital audio signals and analog audio signals to each other, 4x4 is an analog multimedia system for digital upgrades,expansion of the best choice.

   Suitable for large meeting rooms, multi-function halls, theaters, theaters, conference centers, expanding processor inputs and long-distance signal access, distributed processing to reducethe burden of audio processing in the room.

★TI dual-core high speed floating-point DSP

★Dante AoIP Audio network

★Uncompressed transmission supports super-H sampling

★Real-time backup is secure and stable

★Global configuration for easy routing

Specifications

Analog channel ：4 way balanced input + 4 way balanced output

Input gain amplification：-6~36dB, 6dB level 1 level 8

Sampling rate ：48kHz

Frequency Response：20~20KHz,±0.5dB

Digital mode dynamic range：114dBu

Input impedance(balanced type )：20KΩ

EIN(A weighted)：≤-110dBu

Common mode rejection：80dB@80Hz

System delay：＜3ms

Maximum of Input level：10dBu

Working power supply ：AC110V-220V,50Hz/60Hz；POE48V；DV12V

Dante channel：4 input + 4 output

Quantifying the digits：24bit

Phantom Power Supply (per input)：48V

Dimensions：142x157x46mm
