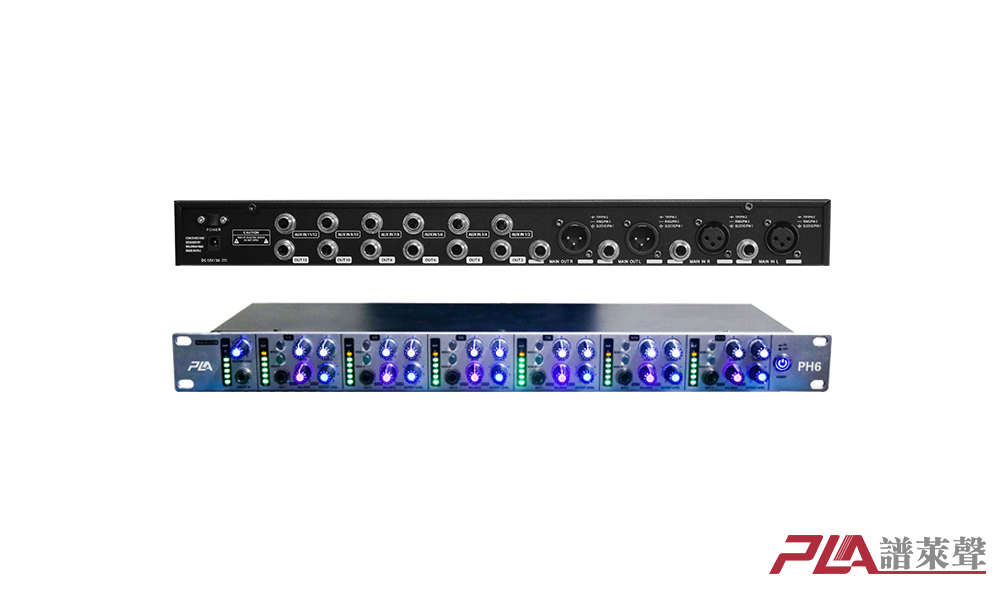

PLA PH6

A clear Headphone amplifier designed from Germany can make the recording result completely different. The 6-channel PLA PH6 has excellent performance, routing, and mixing capabilities, which can accept the most picky ears. Two independent stereo main inputs, as well as dedicated direct inputs on each channel, each listener has their own specific requirements that allow individual performers to obtain customized monitoring mixes. Mixing can also be delivered to multiple listeners, providing high-quality headphone mixing and recording. Everyone's ears will require clear and bright sound to better immerse themselves in singing.

Technical features:

● Professional multi-purpose Headphone amplifier system for stage and studio applications

● Even at high volume, almost all types of headphones have high sound quality

●More flexible mono/stereo switching per channel

● Direct input connectors on each channel

● Parallel main output allows multiple Headphone amplifier to be cascaded

Audio input:

Main input impedance: XLR * 2635mm TRS * 2 balanced input 40 k Ω balanced, unbalanced input 20 k Ω

Maximum input level:+22dBu

Auxiliary input: 6.35mm TRS stereo * 1

Impedance: 20 k Ω

Maximum input level:+22dBu

Direct input: 6.35mm TRS stereo * 1

Impedance: 10 k Ω

Audio output:

Main outputs: 2 * XLR, 2 * 6 35mm TRS, balanced output

Headphone output: 6 * 6.35mm TRS, stereo

Maximum output level:+26 dBm @ 100 Ω+19 dBm @ 8 Ω

Minimum impedance: 8 Ω

System specifications:

Frequency response: 10 Hz to 90 kHz, ± 3dB

Signal to noise ratio:>87 dB@0 DBu (22 Hz to 22 kHz)

Dynamic range: 101 dB (22 Hz to 22 kHz)

Distortion (THD): 0.007% typ. @+4 dBu (1 kHz, gain 1)

Function control:

Input level: variable

Balance (per channel): auxiliary (left)/main (right), variable

Output level (per channel): variable

High pitched: ± 12dB@12kHz

Bass: ± 12dB@80 Hz

Technical indicators:

Input level: -30, 24, 18, 12, 6, 3, 0 decibels, decrease

Output level (per channel): -30, 24, -18, 12, -6, 3, 0 dB, decrease

Power supply:

Power adapter: AC input 100-240 V~50/60 Hz, DC output 12V3A 5.5 * 2.1 interface

Power: 36W

Appearance specifications:

Size (length x width x height): 48x13x4.5cm

Weight: 2kg
