Turing performance

stadiums

theaters

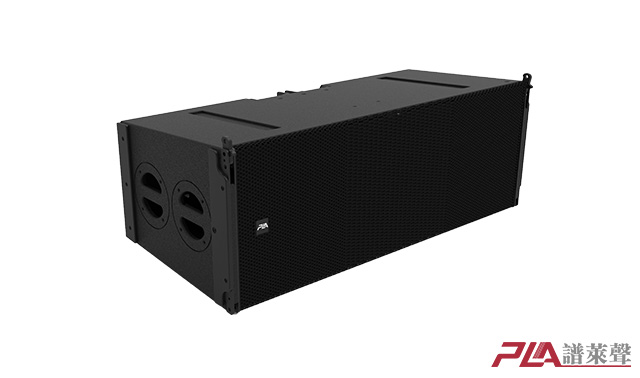

Large three-way drive three-way frequency system

Equipped with WPE wave diameter isometric sound guide

All neodymium high sensitivity unit,great dynamic margins

With WCT (Wavefront Coupling Technology)

With APS angle preset function

With FMM monitor mode technology and +15° front panel angle adjustment

Technical Specification

Frequency Response

Nominal directivity(-6dB)

Sensitivity(@1w/1m)

Power rating

Impedance

Maximum SPL

Transducers

45Hz~20kHz(±3dB)，35Hz~20kHz(-10dB)

100°(H)，8°(V Adjustable)

HF/MF/LF:115dB SPL/103dB SPL/98dB SPL

HF/MF/LF/LF:240W/800W/500W/500W

HF/MF/LF/LF：8/8/8/8 ohm

HF:139/149dB SPL peak

MF:132/142dB SPL peak

LF:128/138dB SPL peak

HF:3x3" Phase Correction compression driver

MF:4x6.5" All Condition Woofer Midrange

LF:2x15"All Condition Woofer

Power Input

Connectors

Speaker Cables

2x8 Neutrik NL8/ 2x8 WP8

WP8:1-2+...LF/3-4+...LF/ 5-6+...MF/7-8+...HF

NL8:1+1-...LF/2+2-...LF/3+3-...MF/4+4-...HF

Physical Data

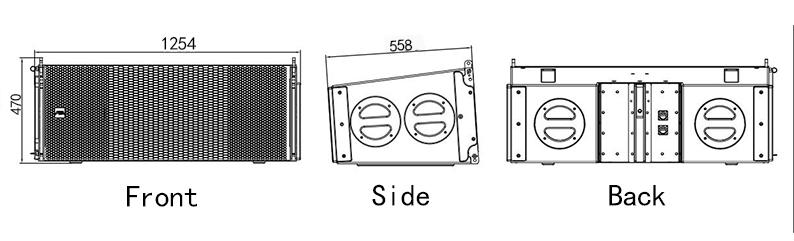

Dimensions

Weight

Material

Finish

Cover

Angles

1254x558x470mm

78 kg

Imported multi-plywood Environmentalwaterproof

 and anti corrosion coatings

Black Polyurea paintings

DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic

0、1、2、3、4、5、6、7、8°Adjustable
