Features:

Small size, light weight, high sound pressure/volume ratio, configured with WPE wave path equidistant acoustic guide

All neodymium high sensitivity unit with high dynamic margins.

WCT (Wavefront Coupling Technology).

APS angle preset function

With FMM monitoring mode technology, the front panel angle can be adjusted + 15 °

Technical parameters:

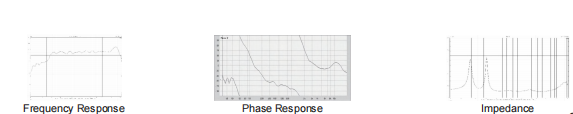

Frequency Response: 100 Hz ~ 86KHz (+/-3dB )80 Hz ~ 20KHz (-10dB )Nominal Directivity: 100 ° (H) vertically adjustable

Sensitivity : (@1W/1m) :96 dB

Impedance : 16 Ohm

Maximum Power(AES) : 240W

Woofers: 2 x 6.5” paper plate woofer

Tweeter: 1 x 1.4” compression tweeter

Maximum Sound Pressure Level:: 130dBSPL

Dimensions: (H×W×D) 214×598×340 (mm)

Weight: 15kg

Connectors: 2*NL4 4-pin (NL4) connectors

Connection: 1+1-

Material: Birch board for box body, environmentally friendly PUA polyurea waterproof anti-corrosion coating on surface

Surface treatment: black polyurea paint

Angle: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 ° adjustable, angle preset structure

Grid: Black square-hole steel mesh and sound-permeable box cloth

Mesh: DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the middle and high transmission area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the mesh.

Applications: mobile performances, theaters and multipurpose halls, churches
