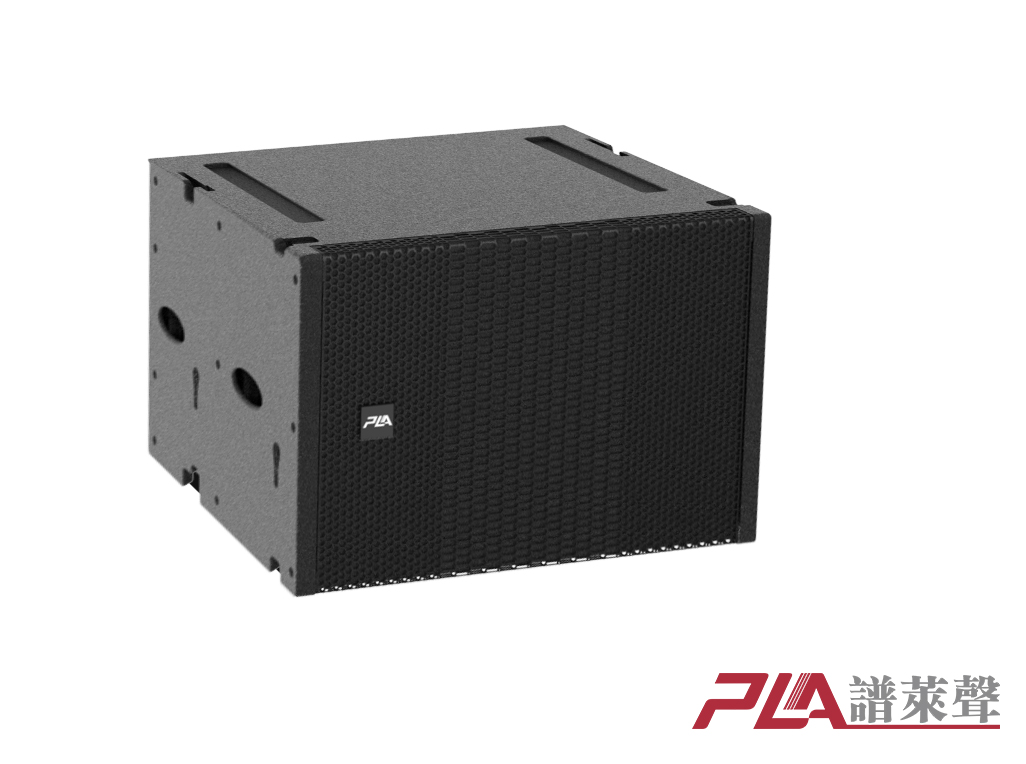

LS206S


Features:


Can match 1-4 LS206 line source array speakers


All neodymium magnet high sensitivity unit, dynamic margin is very large


With WCT (Wavefront Coupling Technology) wavefront coupling technology





Technical parameters:

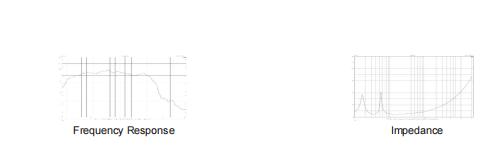

Frequency Response : 35Hz~150Hz(±3dB), 30Hz~200Hz(-10 dB)


Standard Directivity (-6dB) : Non-directional


Sensitivity (@1w/1m): 96dB SPL


Speaker power: 500W


Impedance: 8ohm


Maximum sound pressure level :123dB SPL/133dB SPL peak


Speaker unit: LF: 1x15 “all-weather woofer


Power Input:


Connector : Connector Connection Method


Connection: 1+1-


Appearance:


Dimensions(LxDxH) : 598x510x430mm


Weight: 43kg


Material: imported multi-layer birch board, surface environmental protection PUA polyurea waterproof anti-corrosion coating


Surface treatment: black polyurea paint


Mesh: Black square-hole steel mesh and sound-permeable box cloth


Surface: DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the efficiency of sound transmission and reduces the acoustic crosstalk of the surface mesh.


Hanging: four-point hanging


Applications: mobile performances, theaters and multi-purpose halls, churches
