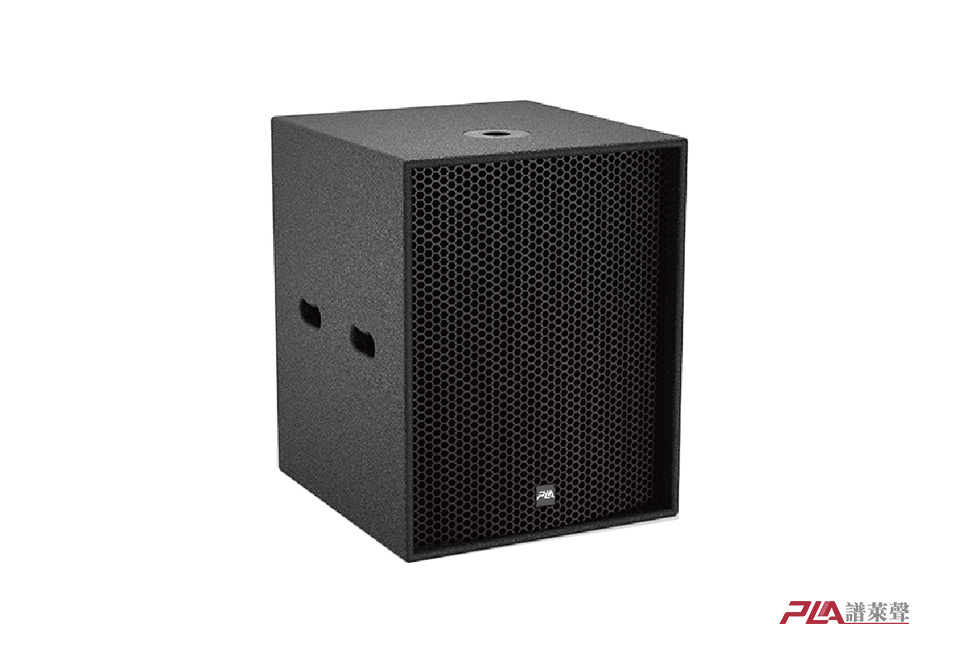

S18

Features:

Inverted phase ultra-low

Direct radiating 18” aluminum cone frame paper cone unit

High temperature resistant 4” (100mm) voice coil

Large inverted phase holes to reduce airflow sound

SWL Ultra Low Frequency Pre-Limit Technology

Technical parameters:

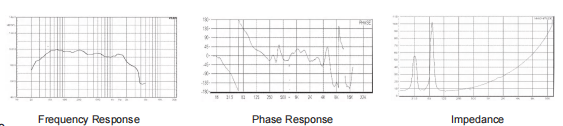

Frequency Response ：32Hz~180Hz(±3dB)，30Hz~250Hz(-10dB)

Standard Directivity (-6dB): Non-directional

Sensitivity (@1w/1m): 99dB SPL

Speaker Power: 1200W

Nominal impedance: 8 ohm

Maximum sound pressure level: 129dB/139dB SPL peak

Speaker unit: 1x18” all-weather woofer

Power Input:

Connector: 2x4 pole Neutrik NL4 speaker stand

Connection: 1+1-

Exterior:

Dimensions (LxDxH) : 561x600x706mm

Weight ：42kg

Material: imported multi-layer birch board, surface environmental protection PUA polyurea waterproof anti-corrosion coating

Surface treatment: black polyurea paint

Mesh: sound-permeable mesh inside the surface mesh

Application: slow rock bar, clubs and clubhouse
