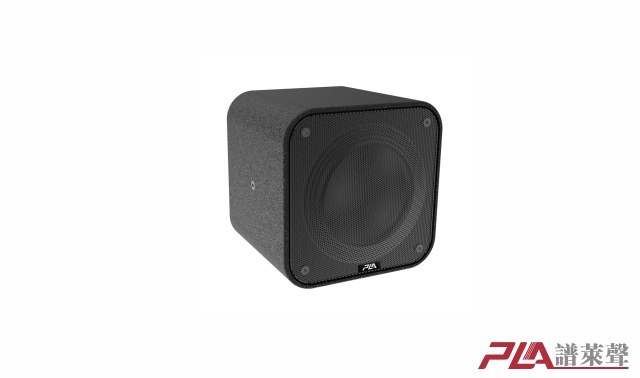

PS6P

Features：

● Adopting imported birch wood, the overall appearance is small and exquisite

● built-in Amplifier circuit, Self-powered output, self-contained

● high-efficiency 6.5-inch Full Range band unit

● D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

● MLC(Microphone&Line Combined Input)Preamplifier Circuit Technology

● With FCT(Full frequency Coherent Technology) technology

Technical Specification

Frequency Response：78Hz~18kHz(±3dB)，65Hz~20kHz(±6dB)

Nominal Coverage(-6dB)：100°(H) x 100°(V)

Sensitivity(@1w/1m)：95dB

Power rating：200W

Impedance：8 ohm

Maximum SPL：125dB SPL peak

Drivers：1x6.5"full-range unit

Power specifications：100~240V，50/60Hz

HF/LF Adjustment：±12dB/±12dB

Power Input

Mic In/Line In：TWO Neutrik XLR input 35mV@Mic In 0.0.775V@LineIn,20Kohms

Link Out：Neutrik XLR loop-through output

Physical Data

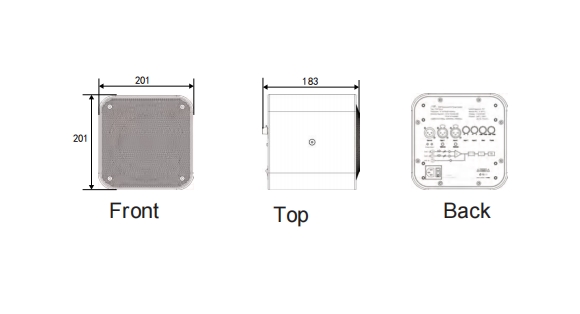

Dimensions(WxDxH)：201x183x201mm

Weight：4.2kg

Material：Imported multi-layer birch board, surface

environmental protection PUA polyurea

waterproof anti-corrosion coating

Finish：Black polyurea paint

Applications

Meeting room、Background music
