LS110S

Applications	Feature
Touring performance	Small enclosure, light weight Small volume inverted phase combined with preamplifier cabinet design 3" Voice Coil High Transient Woofer Dual 15-inch rubber-rimmed neodymium-iron-boron active subwoofers Used with 1-4 LS110 line array speakers With hanging parts, can be stacked, can be suspended Physical Data Same as LS110 With WCT wavefront coupling technology Configuration WPE Wavepath Equal Distance Sound Guide
Theatre
Church
Multipurpose hall

Physical data

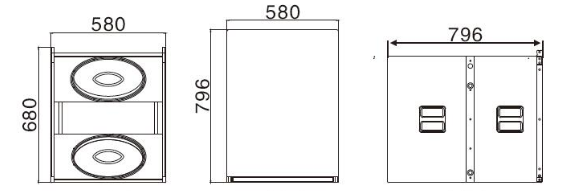

Dimensions	580x796x680mm
Weight	60Kg
Connectors	WP42,NEUTRIK NL4MP2
Speaker Cables	WP4:1-2+ NL4:1+1-
Material	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finsh	Black polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
Mesh	DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
Angles	5、0、-5、-10°Adjustable
