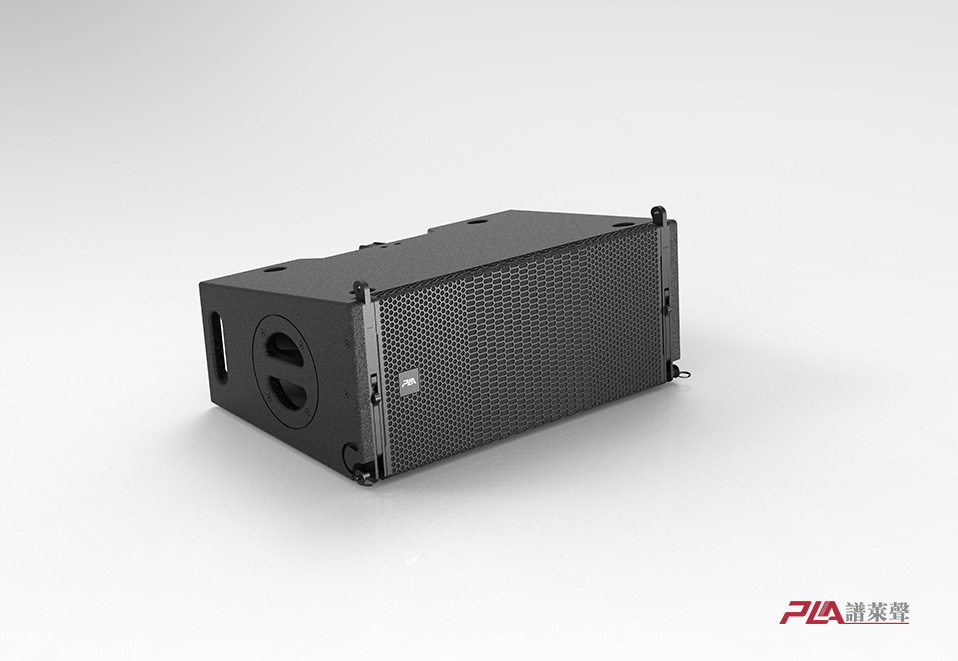

LS210

Application	Feature
Middle and large touring performance	Medium-sized two-way crossover system with WPE wavepath equidistant sound guide
Stadium	All neodymium high sensitivity unit,great dynamic margins
	With WCT (Wavefront Coupling Technology)
	Extremely compact , Small enclosure, light weight
	With APS angle preset function
	With FMM monitor mode technology and +15° front panel angle adjustment

Technical specification

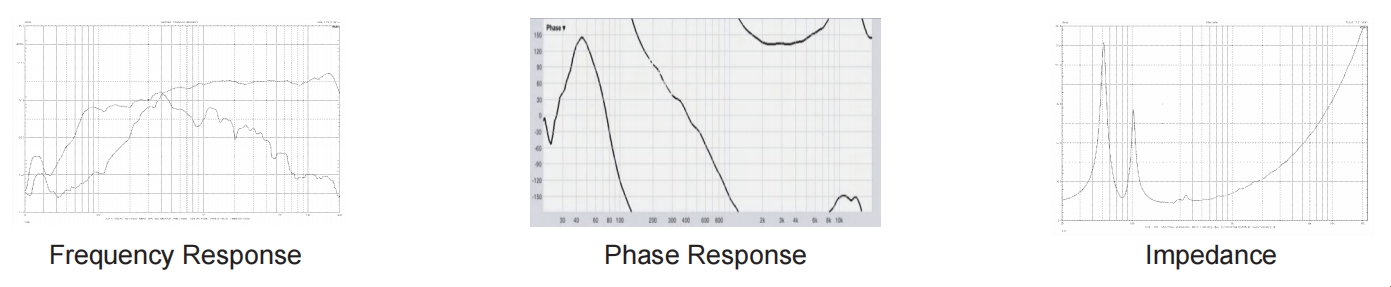

Frequency Respond	60Hz ~ 18 kHz(士3dB )45Hz ~ 20 kHz (-10dB )
Nominal directivity(-6dB)	100°(H),10°(V Adjustable)
Sensitivity(@1w/1m)	HF/LF:112 dB SPL/ 96 dB SP
Powerating	HF/LF: 120W/800W
Impedance	HF/LF: 16/16 ohm
Maximum SPL	HF:133dB/143 dB SPL peak LF:125dB/135 dB SPL peak
Transducers	LF:2x10" All Condition Woofer HF:1x3" Phase Correction compression driver

Physical data

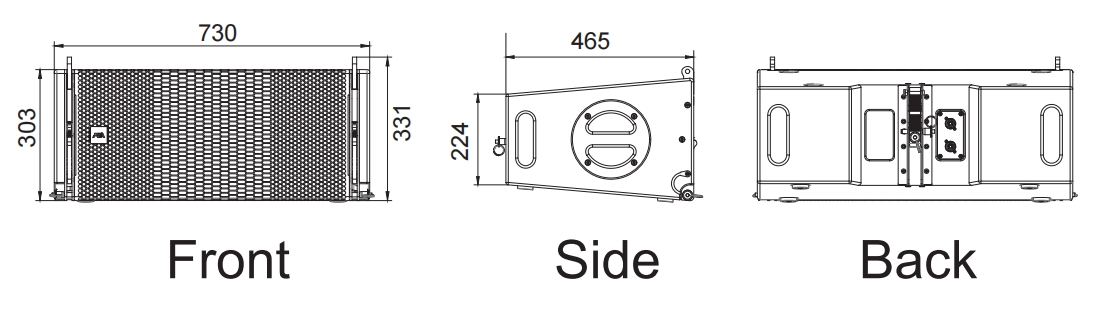

Dimension	730x465x331mm
Weight	30kg
Speaker Cables	WP4:1-2+…LF,3-4+…HF NL4:LF1+1-,HF2+2-
Connectors	WP42,NEUTRIK NL4MP2
Material	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Grille	DPR(Double perforationRate) technology is adopted in the design, in which the perforation rate in the middle and high-pitched transmission area exceeds 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the screen.
Finish	Black Polyurea paintings
Angles	Angels 0、1、2、3、4、5、6、7、8、9、10°Adjustable
