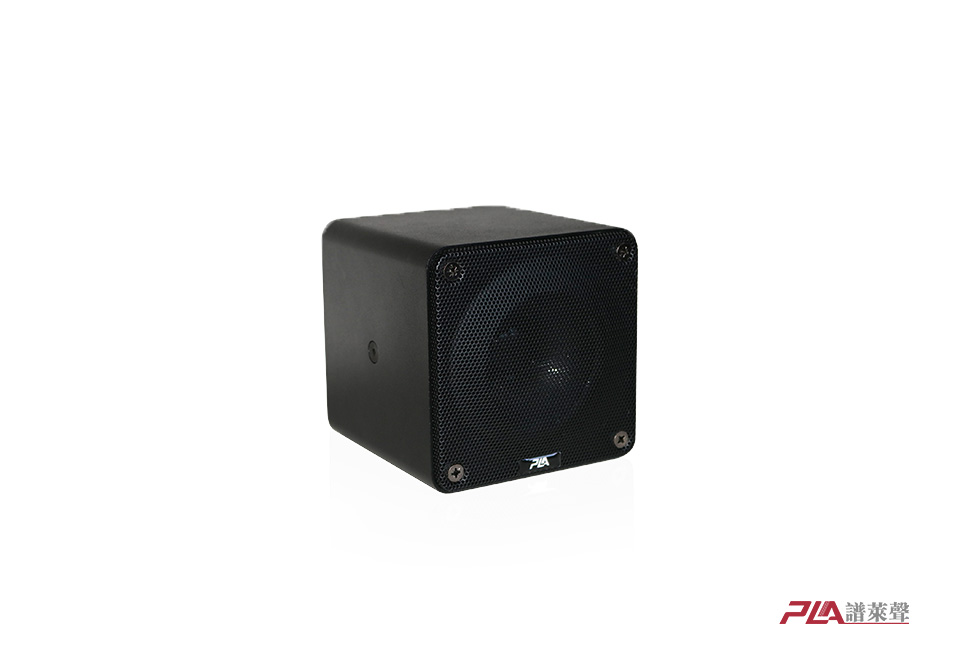

PS4


Applications

Feature





Dual-purpose for mobile performances

With FCT(Full Frequency Coherent Technology) technology

returns and main expansion1 high-efficiency 4.5-inch full-range driver

Adopt metal aluminum case , the overall appearance of small and exquisite

Phoenix plugSpeaker Cables



Technical specification

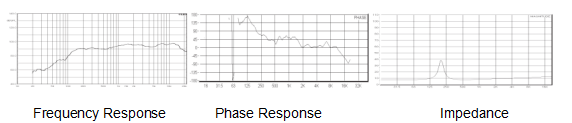

Frequency Respond130 Hz ~ 18 kHz(± 3 dB) ; 100 Hz ~ 20 kHz(- 10 dB)
Nominal directivity(-6dB)110° (H) ×110° (V)


Sensitivity(@1w/1m)93 dB SPL


Power rating50W


Impedance8 ohm


Maximum SPL110dB/120dB SPL peak

Transducers1x 4.5" full-range driver


Power lnput



ConnectorsPhoenix plug


Speaker Cables+1-1



Physical data

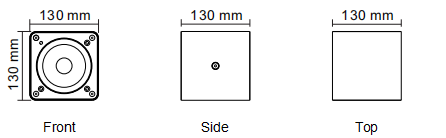

Dimension130x139x130mm


Weight2.5Kg


Material3mm aluminum


FinishWhite, gray, silver or black water-based paint
GrilleBlack Square Hole Stencil,DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
InstallationPole socket and for multiple flying points
