Yang Yuying Guangzhou Concert

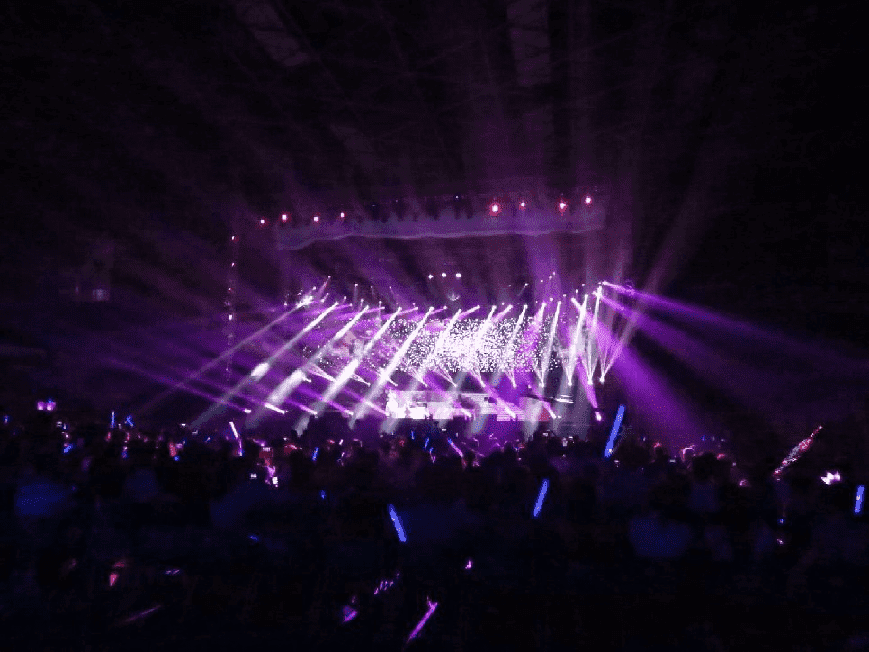

Good Times - Yang Yuying Guangzhou Concert will be held on April 18, 2014 at Guangzhou Tianhe Stadium. Yang Yuying, who debuted in 23, returned to Guangzhou in the first place on April 19, and led the fans to relive the "best time." In the more than two hours of concerts, Yang Yuying presented more than 20 classic golden songs, which made the concert instantly become a nostalgic party.

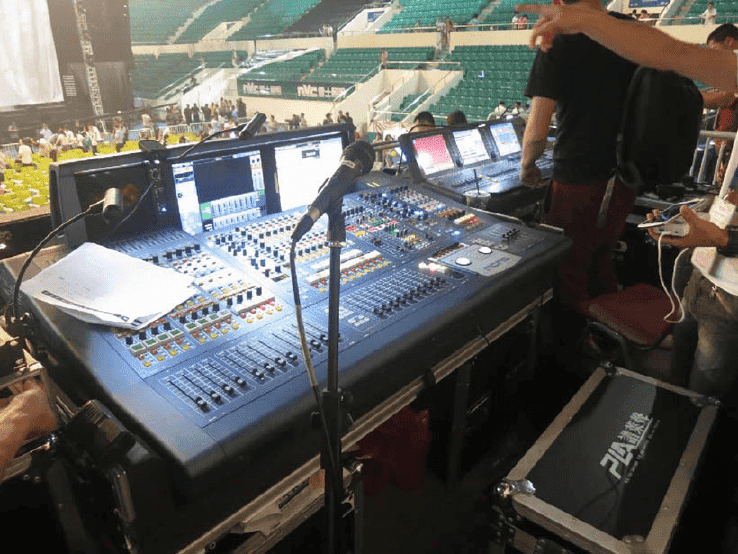

There will be such excellent results depending on the cooperation of PLA professional technology. This time, we used 18 units L-ACOUSTICS V-DOSC , 12 units KUDO, 14 units dV-DOSC, 12 units SB218,12 units HiQ , and dV-SUB, 13 6U, 10U, 12U cabinets, one YAMAHA PM5D-RH digital mixer, one MIDAS PRO6 digital mixer, one MACKIE 1604 16 analog mixer.

However,PLA MS16, a 16-channel passive microphone splitter, plays an important role in the concert. The same series also has PLA MS08, MS01. The entire range of passive microphone distribution systems is designed to work with audio systems that can flexibly change the microphone arrangement. Designed with a full standard XLR interface, the position and arrangement of the input and output microphones can be easily changed and converted. It is also a professional broadcast quality microphone distribution system that provides demanding audio metrics with a first-quality audio transformer that provides audio level signals up to +12dBu. Each channel of the microphone distributor has three sets of outputs: one set of direct output and two sets of transformer isolated outputs. The two sets of transformer isolation outputs (A and B) also have a ground separation selector switch to help solve the noise generated by the ground loop. When the switch is pushed to the left, the ground line will be set to separate; when the switch is turned to the right, the ground line will be set to connect and so on! The EASE Focus Project software system was also used on site to ensure that the live speaker equipment is accurate to the scene. Every seat can clearly hear the wonderful performance of each song of the concert, which is the “best time” 2014 Yang Yuying's Guangzhou concert will return to the past and relive the past feelings!
